Decimate

Description

Decimation of a grid (structured or unstructured) using a reduction target.

This treatment may be used if one wants to coarsen a mesh containing a large number of elements.

For unstructured grids, it reduces the number of triangles in a triangle mesh.

decimate_uns_1 ==> decimate_uns_2

decimate_str_1 ==> decimate_str_2

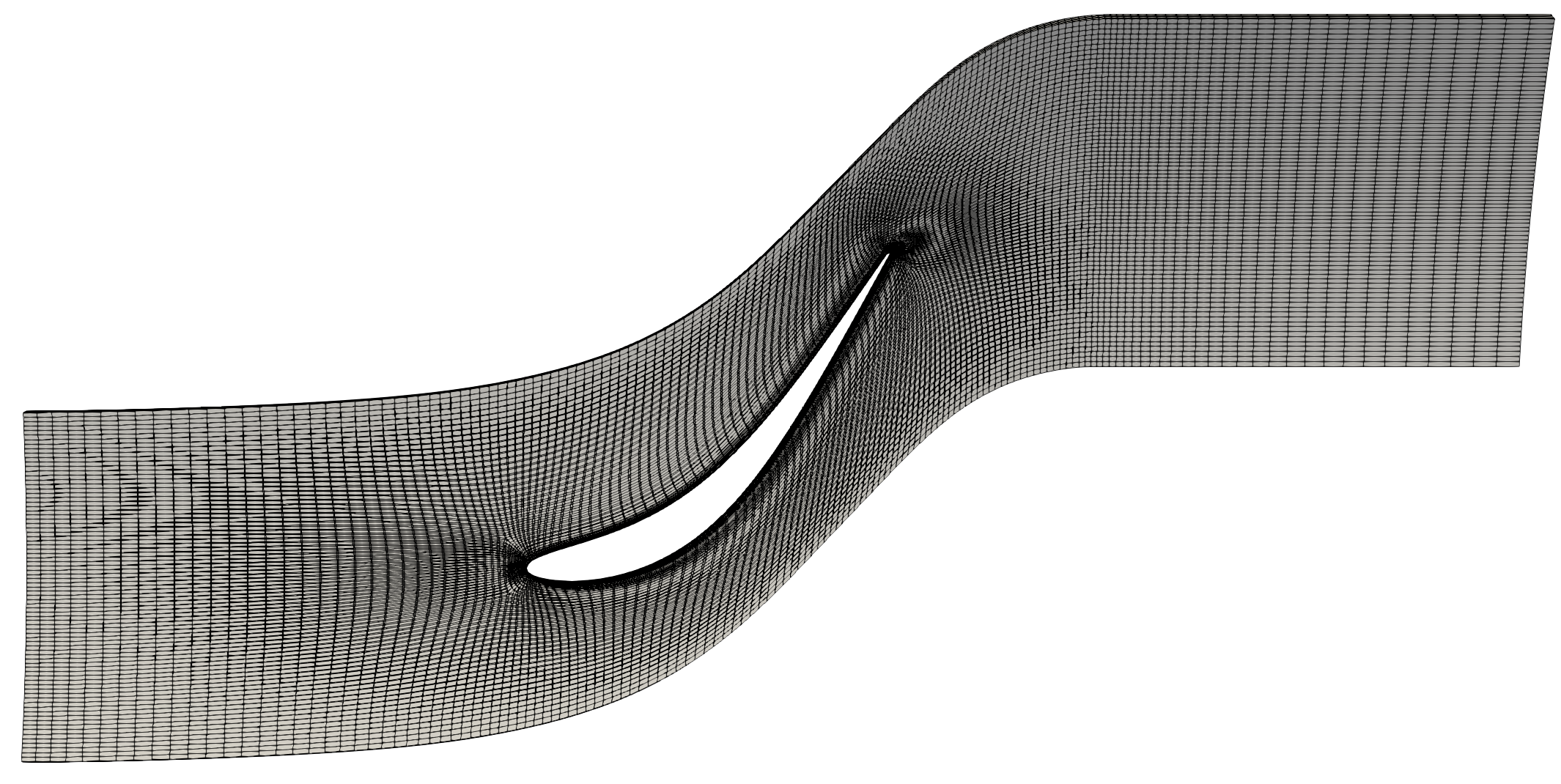

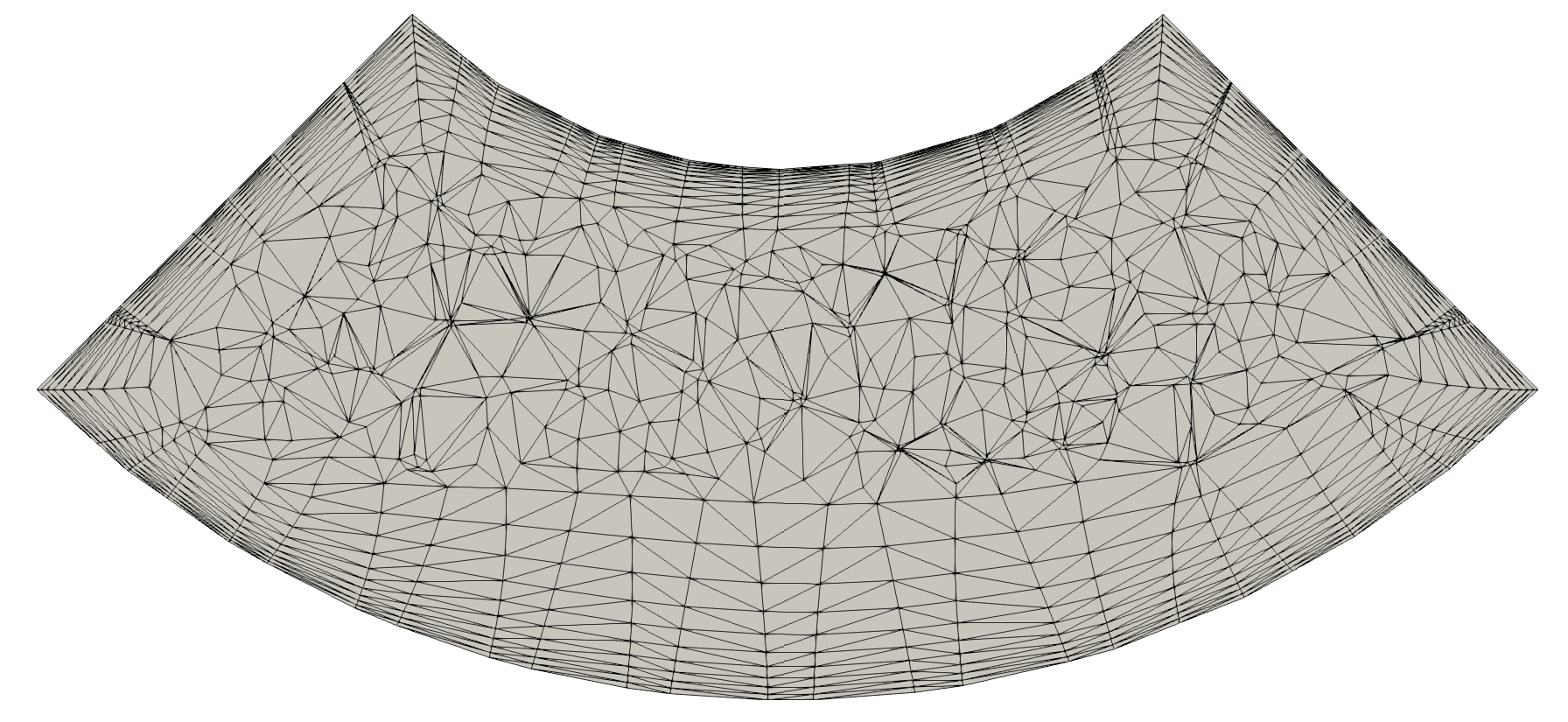

On the left: initial unstructured (top) and structured (bottom) meshes.

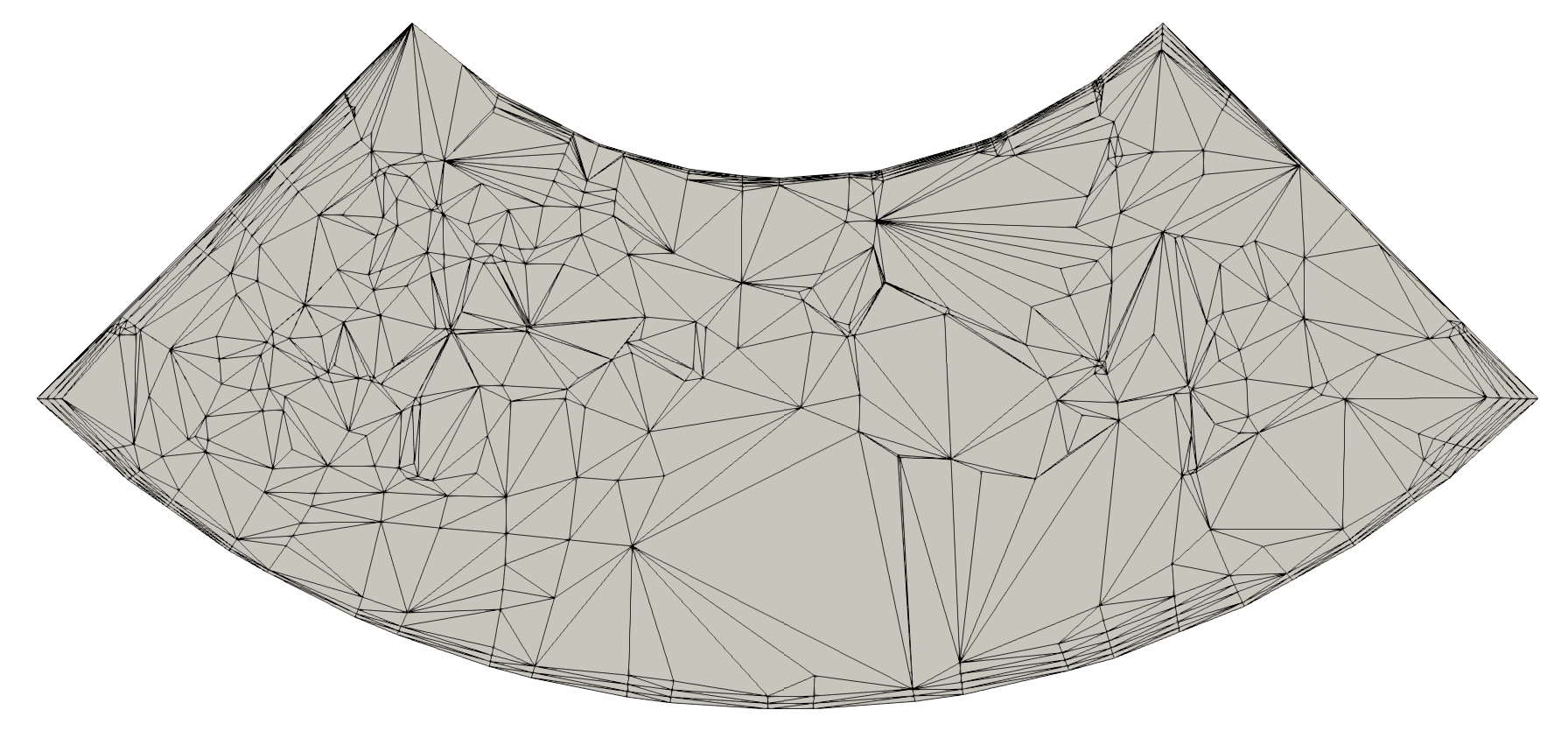

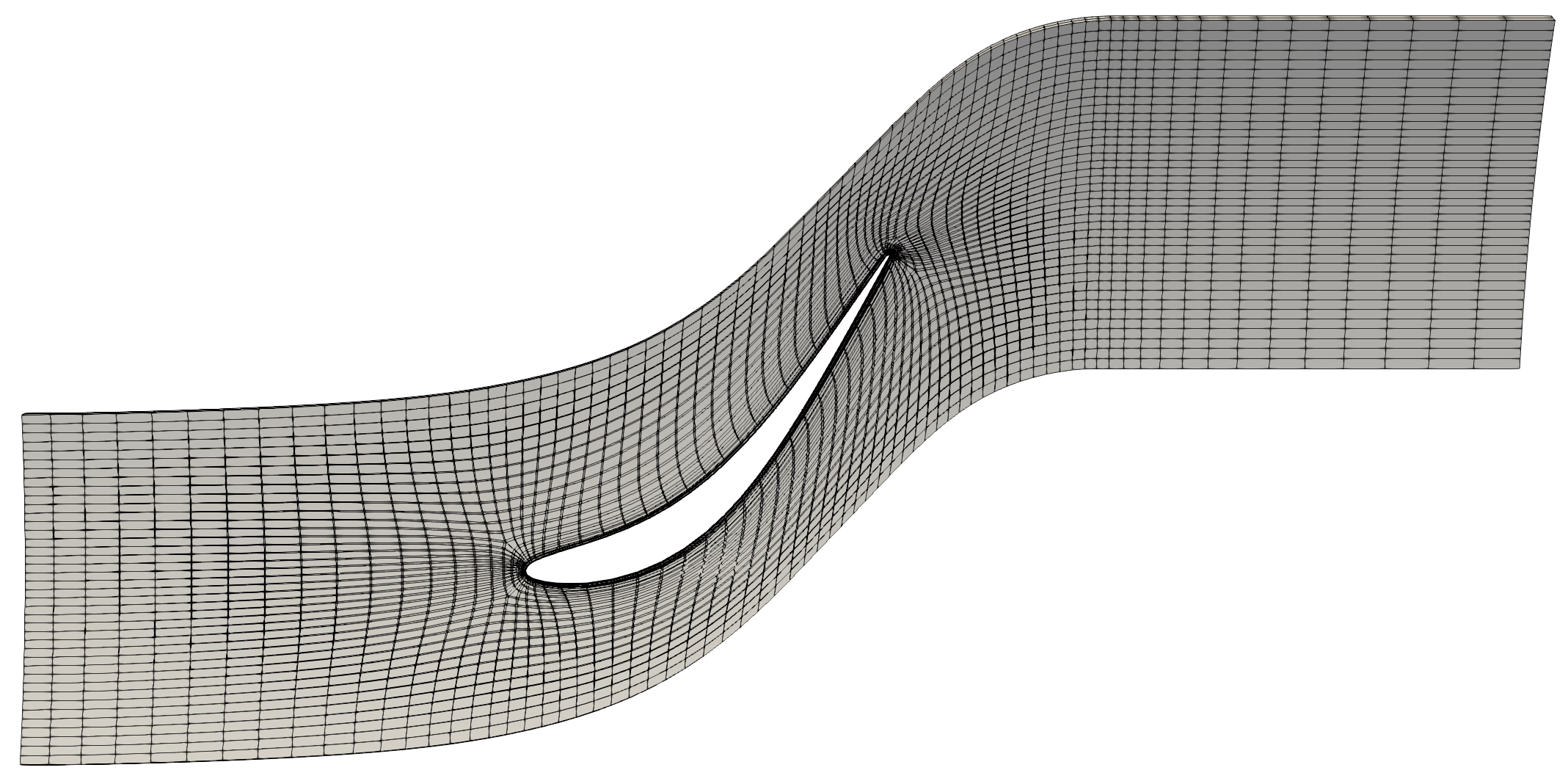

On the right: resulting meshes after Decimate Treatment with reduction = 0.5 for unstructured mesh and reduction = 2. for structured mesh.

Construction

import antares
myt = antares.Treatment('decimate')

Parameters

  • base: antares.Base

    Base to decimate.

  • coordinates: list(str)

    the name of the coordinate variables.

  • reduction: float in [0,1] or int > 1,

    For unstructured grids (2D only), the factor of reduction (float) specifies the percentage of triangles to be removed. For structured grids, the factor of reduction (integer) is the number of points to remove in each topological direction. Example: If the mesh contains 100 elements, and the reduction factor is 0.75, then after the decimation there will be approximately 25 elements - a 75% reduction

  • memory_mode: bool, default= False

    If True, the initial base is deleted on the fly to limit memory usage.

Preconditions

Zones may be either structured or unstructured.

Zones may contain multiple instants.

Postconditions

Example

This example shows how to decimate a base. To be able to use this functionnality you must have vtk installed.

import antares

myt = Treatment('decimate')
myt['base'] = base
myt['coordinates'] = [('x', 'node'), ('y', 'node'), ('z', 'node')]
myt['reduction'] = 0.5
myt['memory_mode'] = True
base_decimate = myt.execute()

Warning

dependency on VTK

Main functions

class antares.treatment.TreatmentDecimate.TreatmentDecimate
execute()

Execute the treatment.

Returns

Return type

antares.Base

Example

"""
This example shows how to decimate a base.
This can be useful if you want to test some kinds of treatment
on large meshes.
"""
import os
if not os.path.isdir('OUTPUT'):
    os.makedirs('OUTPUT')

from antares import Reader, Treatment, Writer

# ------------------
# Reading the files
# ------------------
r = Reader('hdf_avbp')
r['filename'] = os.path.join('..', 'data', 'SECTOR', 'hybrid_sector.mesh.h5')
r['shared'] = True
base = r.read()
r = Reader('hdf_avbp')
r['base'] = base
r['filename'] = os.path.join('..', 'data', 'SECTOR', 'hybrid_sector.sol.h5')
r.read()

treatment = Treatment('cut')
treatment['base'] = base
treatment['type'] = 'plane'
treatment['origin'] = [0.0002, 0.0006, 0.]
treatment['normal'] = [1., 0., 0.]
result = treatment.execute()

ini_size = result[0][0].connectivity['tri'].size
# ------------------------------------------------------
# Decimate the unstructured base with a reduction factor
# ------------------------------------------------------
treatment = Treatment('decimate')
treatment['base'] = result
treatment['reduction'] = 0.1
treatment['memory_mode'] = True
result = treatment.execute()

print("Effective reduction: ", (100.0*(ini_size-result[0][0].connectivity['tri'].size))/ini_size, "%")
# -------------------
# Writing the result
# -------------------
w = Writer('bin_tp')
w['filename'] = os.path.join('OUTPUT', 'ex_uns_decimated.plt')
w['base'] = result
w.dump()

# ------------------
# Reading the files
# ------------------
reader = Reader('bin_tp')
reader['filename'] = os.path.join('..', 'data', 'ROTOR37', 'GENERIC', 'flow_<zone>_ite<instant>.dat')
base = reader.read()

# ------------------------------------------------------
# Decimate the unstructured base with a reduction factor
# ------------------------------------------------------
treatment = Treatment('decimate')
treatment['base'] = base
treatment['reduction'] = 2
treatment['memory_mode'] = True
result = treatment.execute()

# -------------------
# Writing the result
# -------------------
w = Writer('bin_tp')
w['filename'] = os.path.join('OUTPUT', 'ex_str_decimated.plt')
w['base'] = result
w.dump()
