Translation

Description

Translates zones of a base with respect to translation vector.

Construction

import antares
myt = antares.Treatment('translation')

Parameters

• base: Base

  The input base to be translated.

• coordinates: list(str), default= None

  The variable names that define the set of coordinates. If None the default coordinate system of the base is used.

• vector: seq(float), default=*[]*

  The displacement vector (sequence of floats) used to translate the base.

• memory_mode: bool, default= False

  If True, the modifications are done directly on the input base to limit memory usage. If False, a new base is created.

Preconditions

• The coordinate system must be the cartesian coordinate system.

• The dimension of vector must match the length of the coordinate system

Postconditions

• If memory_mode = False, the input base remains unchanged and the output base has the same structure as the input base. If memory_mode = True, the input base is modified in-place and the returned base is the same object as the input base.

Example

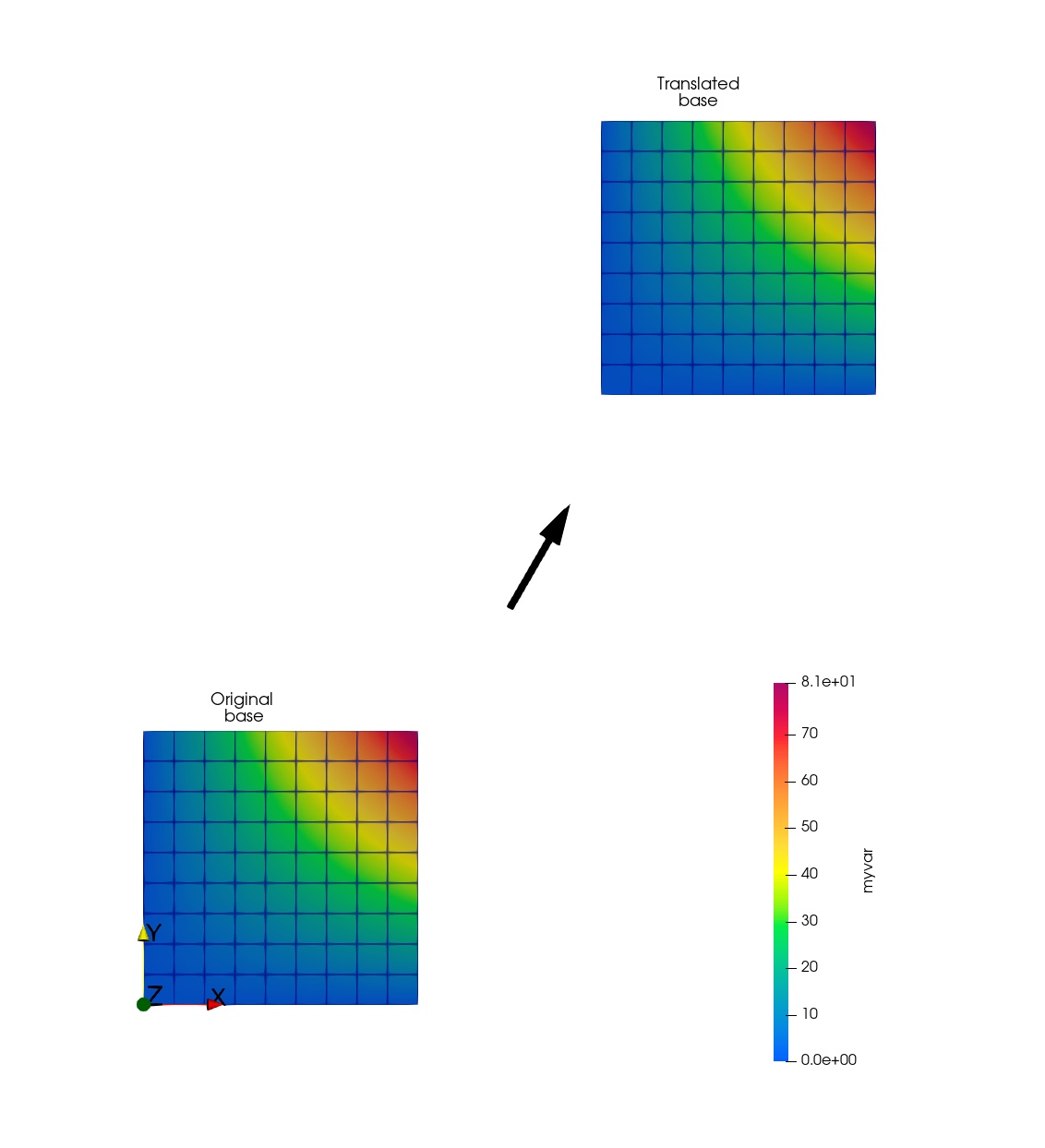

The following example shows a translation of a base by a vector [10., 10., 10.].

import antares
myt = antares.Treatment('translation')
myt['base'] = base
myt['coordinates'] = ['x', 'y', 'z']
myt['vector'] = [10., 10., 10.]
translated_base = myt.execute()

Main functions

class antares.treatment.TreatmentTranslation.TreatmentTranslation

execute()

Translates the base.

Returns:

the base containing the results.

Return type:

Base

Example

import antares
import numpy as np
import os

output_folder = os.path.join("OUTPUT", "TreatmentTranslation")
os.makedirs(output_folder, exist_ok=True)

X, Y = np.mgrid[0:10, 0:10]

# Create base to translate
base = antares.Base()
base.init()
base[0][0]['x'] = X
base[0][0]['y'] = Y
base[0][0]['myvar'] = X*Y # create a dummy variable
base.coordinate_names = ['x', 'y']

# Dump base to translate
w = antares.Writer('hdf_antares')
w['base'] = base
w['filename'] = os.path.join(output_folder, 'base_to_translate')
w.dump()

# Apply translation treatment
translation = antares.Treatment('translation')
translation['base'] = base
translation['vector'] = [15, 20]
translated_base = translation.execute()

# Dump result
w = antares.Writer('hdf_antares')
w['base'] = translated_base
w['filename'] = os.path.join(output_folder, 'translated_base')
w.dump()
